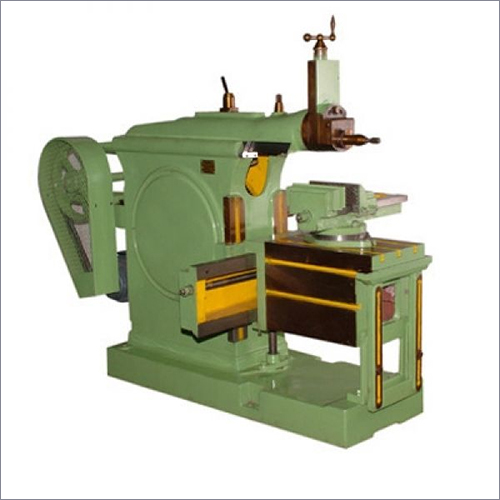

Heavy Duty Shaping Machine - 18

Heavy Duty Shaping Machine - 18
Heavy Duty Shaping Machine - 18
Price And Quantity
  • Piece/Pieces
  • 1
  • Piece/Pieces
  • 2,15,000 INR
    Product Description

    Particulars

    Inch

    MM

    Length of stroke

    18

    460

    Length of Ram

    38

    970

    Length & width of Ram Bearing

    27 x 10

    685 x 250

    Max. & min Distance from table to Ram

    18.5 x 2

    470 x 50

    Working surface of table

    16 x 11

    406 x 280

    Maximum table travel horizontal

    20

    508

    Maximum table travel vertical

    16

    406

    Angular Movement of table on either side



    90 L ; 90 R

    Max. Vertical travel of too slide

    7

    178

    Max. swivel of tool head



    90 L ; 90 R

    Range of Ram speed



    3 Speed

    Length and width of base

    50 x 18

    1270 x 460

    Range of tool head feed



    Hand Feed

    Main drive motor (3 phase)



    1.5 HP (1440 RPM)

    V-belt section



    B - 55

    Main Switch starter (push button type)



    5 AMP Mini DOL Starter

    Overall Dimension

    63 x 40 x 58

    1600 x 1016 x 1475
